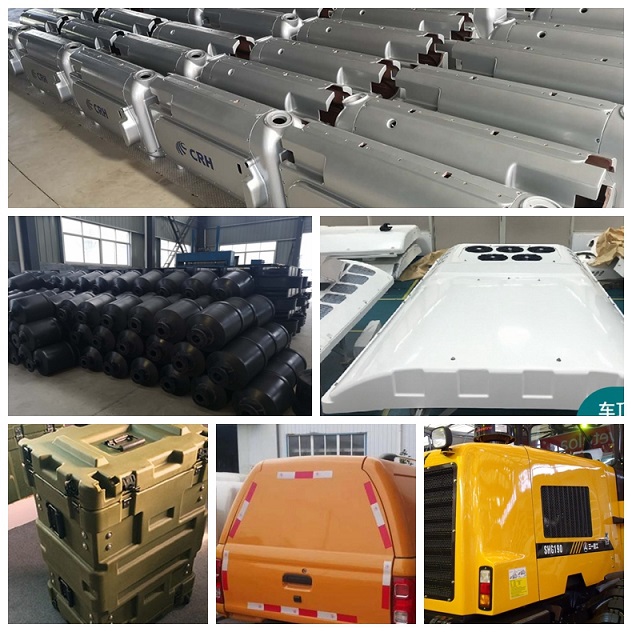

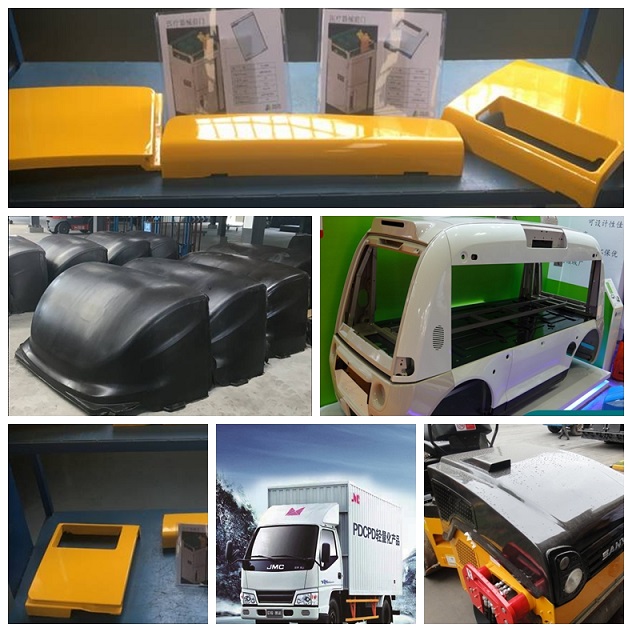

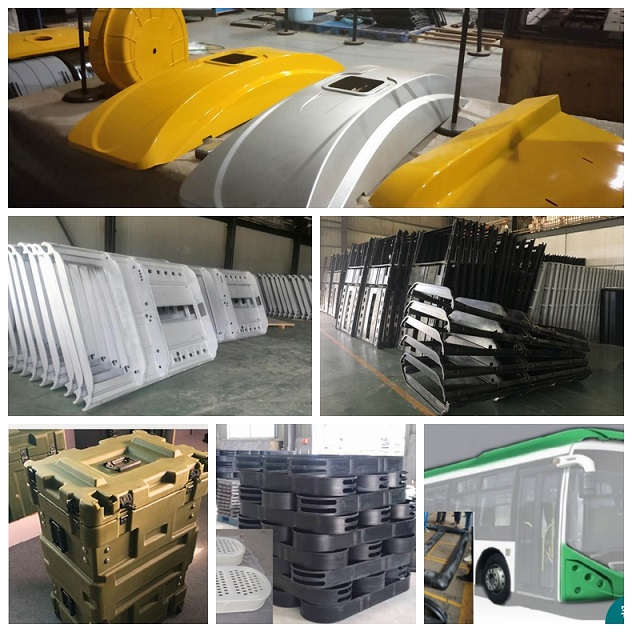

Products Display :A Wide Rang of Products Made from PDCPD

PDCPD materials ware widely used in automobile manufacturing, construction engineering template, agricultural machinery, military, civil, medical, scientific research and national defense

A WIDE RANGE OF PDCPD APPLICATION

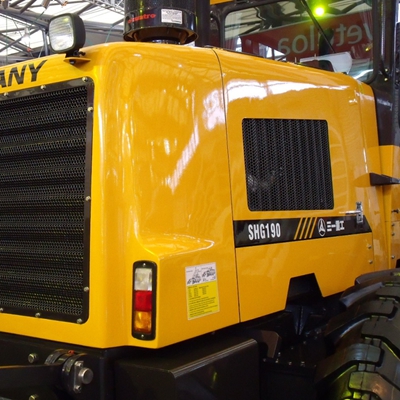

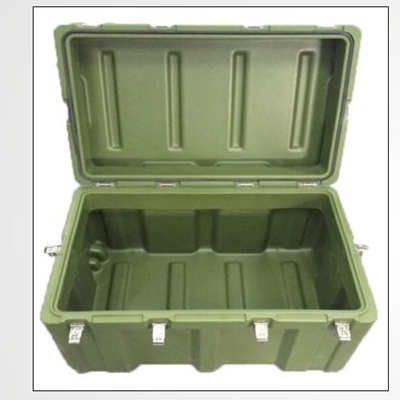

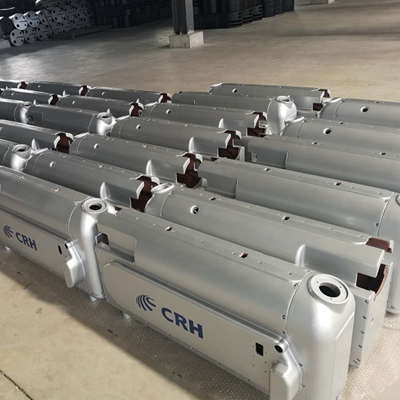

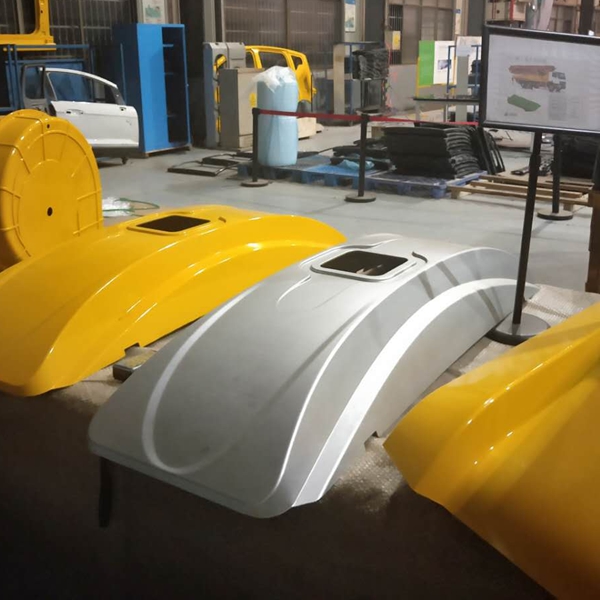

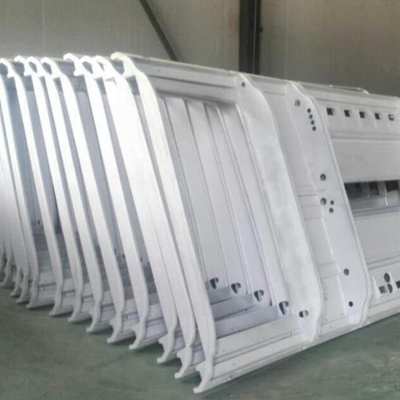

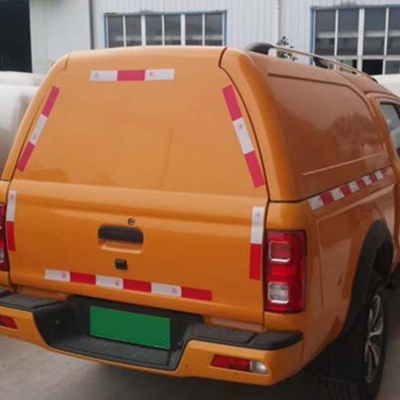

PDCPD is most suitable for the manufacture of construction machinery, agricultural machinery, trucks, automobile coverings, integrated large-scale molding products represented by sanitary equipment, and purification tanks. It is the ideal material to replace glass fiber reinforced plastic, some plastics, metal sheet metal parts, carbon fiber, and alloy in the future, and it is also the high-quality choice for lightweight equipment in many new industries such as new energy automobile, wind power generation, unmanned aerial vehicle, tunnel template, robot and so on, and the application field is extremely broad, and it can be widely used in the fields of automobile manufacturing, construction engineering template, agricultural machinery, military, civil, medical, scientific research and national defense, and it has great market potential and development space. development space is huge.

PDCPD Products Properties Reference

Content

 Unit

Testing Method

Content

 Unit

Testing Method

Tensile strength

47.5MPa

GB/T 1040.2-2006

Rockwell hardness

115

GB/T3398.2-2008

Tensile modulus

1900MPa

GB/T 1040.2-2006

Distortion temperature

110.5

GB/T1634.2-2004

Elongation at break

12.30%

GB/T 1040.2-2006

Density

1.03g/cm³

GB/T1033.1-2008

Compressive strength

60.8MPa

GB/T 1041-2008

Glass transition temperature

169℃

GB/T19466.2-2004

Bending strength

75.6MPa

GB/T9341-2008

Burning horizontally

HB40

GB/T2408-2008

Bending modulus of elasticity

2053MPa

GB/T9341-2008

Water Absorption

0.10%

GB/T1034-2008

Notched impact strength

of cantilever beam (23℃)

33.1

GB/T1843-2008

Automotive interior combustion

Performance (burning rate)

A-0

GB 8410-2006

Notched impact strength of

 cantilever beam (-40℃)

12.8

GB/T1843-2008

Rockwell hardness

115

GB/T3398.2-2008
