Widely Application Engeering Plastic PDCPD Auto Parts High Impact and Lightweighting

High impact and lightweighting PDCPD materials are used widely in Automobile Industry production



Product Description

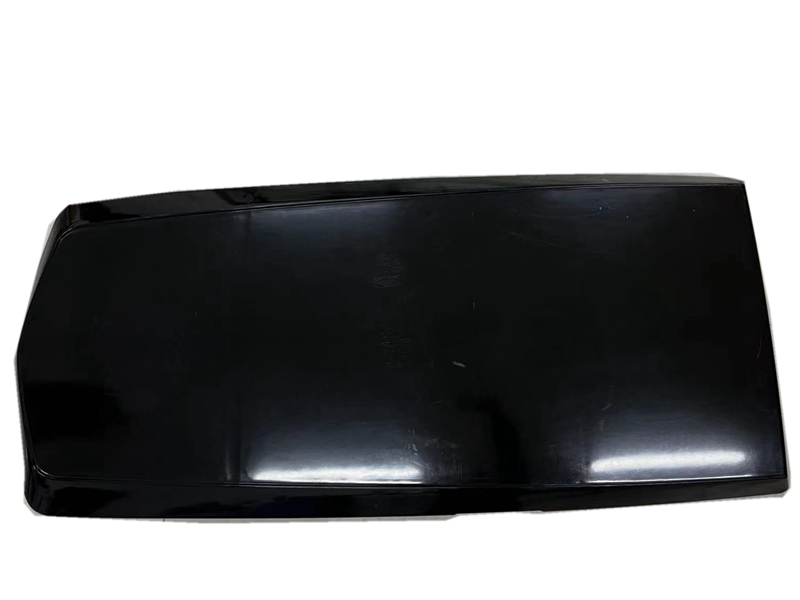

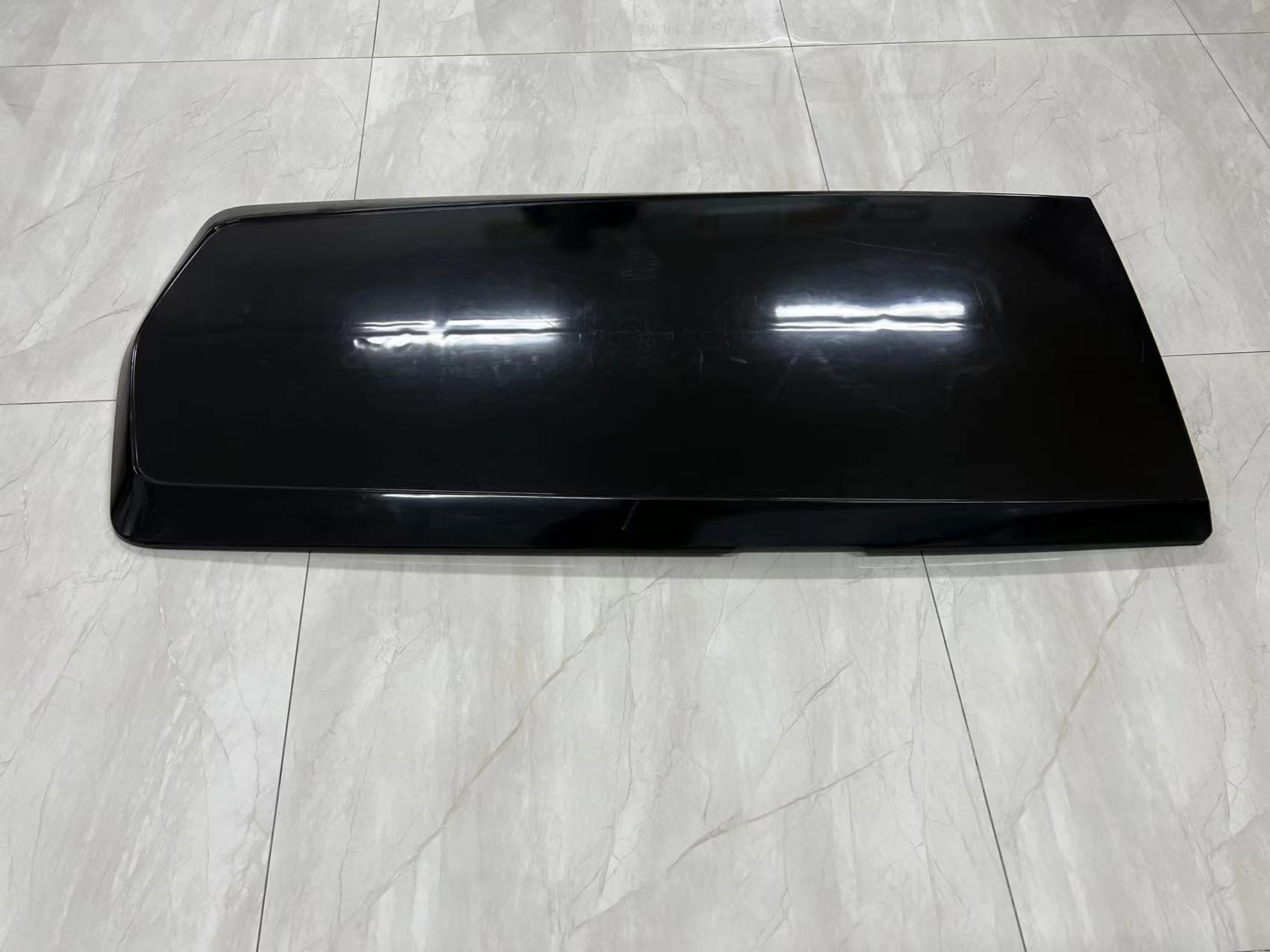

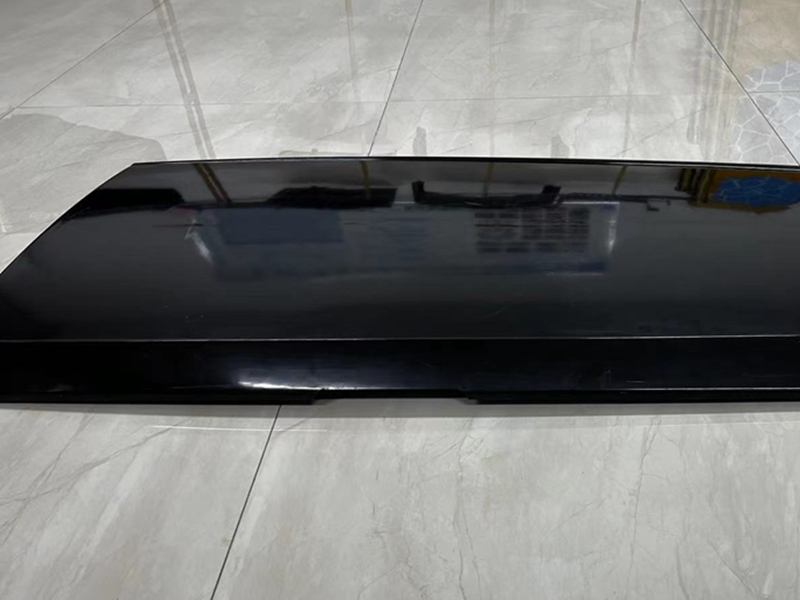

PDCPD materials are mainly used in automobiles and components, including bumpers, machine covers, and guards. Due to the light weight of PDCPD materials, transportation and assembly will be more labor-saving, and can be used in vehicle shells and other parts instead of metal or fiberglass, in order to reduce the fuel consumption of the vehicle and increase the load capacity of the vehicle.



PDCPD Products High Properties Test Reference



Content

 Unit

Testing Method

Content

 Unit

Testing Method

Tensile strength

47.5MPa

GB/T 1040.2-2006

Rockwell hardness

115

GB/T3398.2-2008

Tensile modulus

1900MPa

GB/T 1040.2-2006

Distortion temperature

110.5

GB/T1634.2-2004

Elongation at break

12.30%

GB/T 1040.2-2006

Density

1.03g/cm³

GB/T1033.1-2008

Compressive strength

60.8MPa

GB/T 1041-2008

Glass transition temperature

169℃

GB/T19466.2-2004

Bending strength

75.6MPa

GB/T9341-2008

Burning horizontally

HB40

GB/T2408-2008

Bending modulus of elasticity

2053MPa

GB/T9341-2008

Water Absorption

0.10%

GB/T1034-2008

Notched impact strength

of cantilever beam (23℃)

33.1

GB/T1843-2008

Automotive interior combustion

Performance (burning rate)

A-0

GB 8410-2006

Notched impact strength of

 cantilever beam (-40℃)

12.8

GB/T1843-2008

Rockwell hardness

115

GB/T3398.2-2008



Ten Advantages of PDCPD Products Properties

 1.  Wide molding range: two-component, low-viscosity liquid resin injection molding, shape, runner, and pressure restrictions are small, can produce large, complex shapes, the wall thickness of the workpiece.

 2. Equipment Investment: simple molding process, low pressure and temperature requirements, less investment in molding equipment, low mold costs, long service life of the mold, small amortization costs

 3. Good balance of physical properties: excellent and balanced physical properties, especially the combination of high impact resistance and high rigidity, can get lightweight, high strength, rugged, and durable parts.

 4. Temperature and corrosion resistance: outstanding resistance to temperature change, high temperature does not creep, low temperature does not cause brittle crack, can be used in -40 ~ 100 ℃ environment for a long time: excellent corrosion resistance, especially acid resistance, alkali resistance is outstanding.

 5. High product precision: the product deformation is small, the size error is small, and the consistency of the workpiece is high; in general, the control of the size error of the workpiece can reach the GB/T1804-m level.

 6. Excellent decorative properties: the surface of the molded parts is easy to form a dense oxide film with good adhesion to paint. It can also be plated, water transfer printing, and other surface decorative treatments.

 7. Good designability: high degree of design freedom, can be pre-embedded, riveted, glued, self-tapping, and drilling, can be unequal thickness structure, sandwich structure, composite structure, etc.

 8. High molding efficiency: short mold development cycle. Less production labor, high molding efficiency, product molding cycle is generally 3 ~ 5 min. can be configured with robot to achieve automated demolding, trimming, and so on.

 9. Good Safety and environmental protection: no fiber and dust, no poison and pollution, less edge residue, recyclable and harmless reuse, reuse more ways, high added value.

 10. Wide range of applications, design freedom, applied in various automobiles, engineering equipment, medical equipment, chemical equipment, entertainment facilities, military, civilian, and other fields. Excellent performance, PDCPD material process, green, lightweight, high strength, green, fast and economical industrial closure.
