Amazing Property PDCPD RIM Resin Material Supplement for A Wide Usage

PDCPD-RIM resin is generally composed of A and B Liquids. All the added substances have been strictly screened to meet the requirements of the international "Banned Substances Program", and do not contain any substances in the RoHS standard and REACH SVHC list.

  • Item Name: :

    PDCPD new material
  • Order(MOQ): :

    4 drums A and 4 drums B
  • Payment : :

    50% deposit by T/T before mass production with the balance before shipping
  • Product Origin : :

    Bengbu,Anhui,China
  • Color: :

    tranparent and light yellow
  • Shipping Port : :

    Shanghai
  • Lead Time : :

    20-35days
  • Net Weight : :

    195kgs/barrel

Product Description

PDCPD is a highly reactive, high-performance liquid resin, consisting of A and B bi-components. PDCPD is a remarkable environmentally friendly new material in the world today, and is recognized as a "model of green chemistry.”



A MATERIAL COMPOSITION



B MATERIAL COMPOSITION

Chemical Name

In% By Weight

CAS No.



Chemical Name

In% By Weight

CAS No.

Dicyclopentadiene

80-90%

77-73-6



Dicyclopentadiene

80-90%

77-73-6

Cyclopentadiene trimer

5-10%

7158-25-0



Cyclopentadiene trimer

5-10%

7158-25-0

Tackifier

0-5%

Mixed



Tackifier

0-5%

Mixed

Alkyl aluminum compounds

≤1.8%

Mixed



Alkyl aluminum compounds

≤1.0%

Mixed

Silicone oil

≤0.05%

9006-65-9



Silicone oil

≤0.05%

1333-86-4

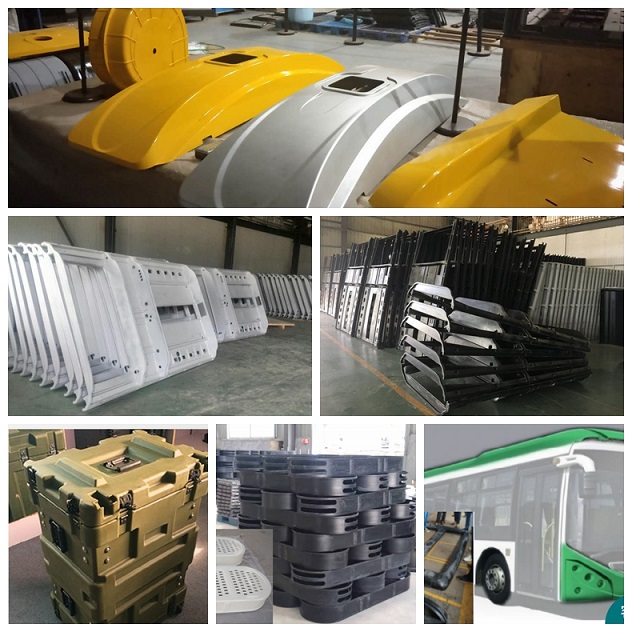

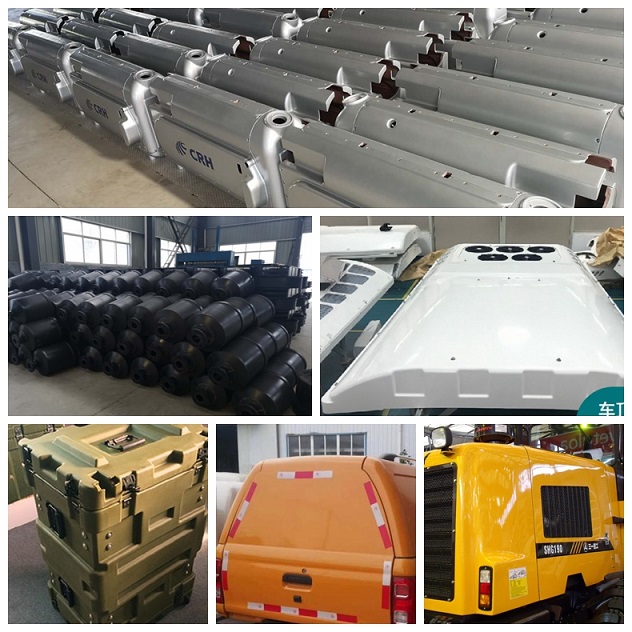

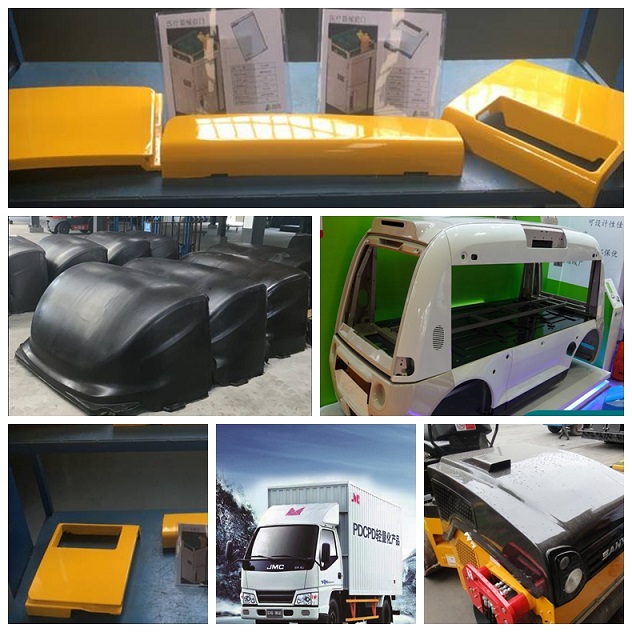

A WIDE RANGE OF PDCPD APPLICATION

PDCPD is most suitable for the manufacture of construction machinery, agricultural machinery, trucks, automobile coverings, integrated large-scale molding products represented by sanitary equipment, and purification tanks. It is the ideal material to replace glass fiber reinforced plastic, some plastics, metal sheet metal parts, carbon fiber, and alloy in the future, and it is also the high-quality choice for lightweight equipment in many new industries such as new energy automobile, wind power generation, unmanned aerial vehicle, tunnel template, robot and so on, and the application field is extremely broad, and it can be widely used in the fields of automobile manufacturing, construction engineering template, agricultural machinery, military, civil, medical, scientific research and national defense, and it has great market potential and development space. development space is huge.



PDCPD Products High Properties Test Reference



Content

 Unit

Testing Method

Content

 Unit

Testing Method

Tensile strength

47.5MPa

GB/T 1040.2-2006

Rockwell hardness

115

GB/T3398.2-2008

Tensile modulus

1900MPa

GB/T 1040.2-2006

Distortion temperature

110.5

GB/T1634.2-2004

Elongation at break

12.30%

GB/T 1040.2-2006

Density

1.03g/cm³

GB/T1033.1-2008

Compressive strength

60.8MPa

GB/T 1041-2008

Glass transition temperature

169℃

GB/T19466.2-2004

Bending strength

75.6MPa

GB/T9341-2008

Burning horizontally

HB40

GB/T2408-2008

Bending modulus of elasticity

2053MPa

GB/T9341-2008

Water Absorption

0.10%

GB/T1034-2008

Notched impact strength

of cantilever beam (23℃)

33.1

GB/T1843-2008

Automotive interior combustion

Performance (burning rate)

A-0

GB 8410-2006

Notched impact strength of

 cantilever beam (-40℃)

12.8

GB/T1843-2008

Rockwell hardness

115

GB/T3398.2-2008



Ten Advantages of PDCPD Products Properties

 1.  Wide molding range: two-component, low-viscosity liquid resin injection molding, shape, runner, and pressure restrictions are small, can produce large, complex shapes, the wall thickness of the workpiece.

 2. Equipment Investment: simple molding process, low pressure and temperature requirements, less investment in molding equipment, low mold costs, long service life of the mold, small amortization costs

 3. Good balance of physical properties: excellent and balanced physical properties, especially the combination of high impact resistance and high rigidity, can get lightweight, high strength, rugged, and durable parts.

 4. Temperature and corrosion resistance: outstanding resistance to temperature change, high temperature does not creep, low temperature does not cause brittle crack, can be used in -40 ~ 100 ℃ environment for a long time: excellent corrosion resistance, especially acid resistance, alkali resistance is outstanding.

 5. High product precision: the product deformation is small, the size error is small, and the consistency of the workpiece is high; in general, the control of the size error of the workpiece can reach the GB/T1804-m level.

 6. Excellent decorative properties: the surface of the molded parts is easy to form a dense oxide film with good adhesion to paint. It can also be plated, water transfer printing, and other surface decorative treatments.

 7. Good designability: high degree of design freedom, can be pre-embedded, riveted, glued, self-tapping, and drilling, can be unequal thickness structure, sandwich structure, composite structure, etc.

 8. High molding efficiency: short mold development cycle. Less production labor, high molding efficiency, product molding cycle is generally 3 ~ 5 min. can be configured with robot to achieve automated demolding, trimming, and so on.

 9. Good Safety and environmental protection: no fiber and dust, no poison and pollution, less edge residue, recyclable and harmless reuse, reuse more ways, high added value.

 10. Wide range of applications, design freedom, applied in various automobiles, engineering equipment, medical equipment, chemical equipment, entertainment facilities, military, civilian, and other fields. Excellent performance, PDCPD material process, green, lightweight, high strength, green, fast and economical industrial closure.

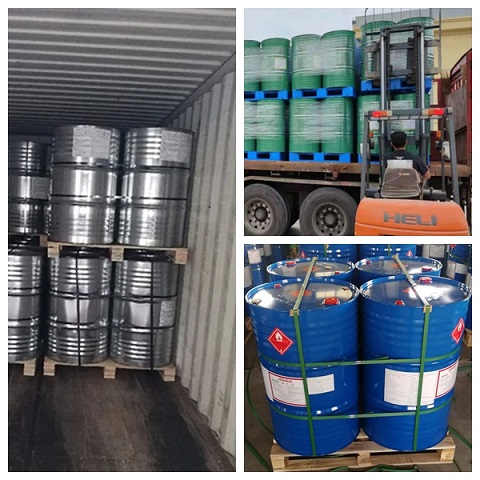

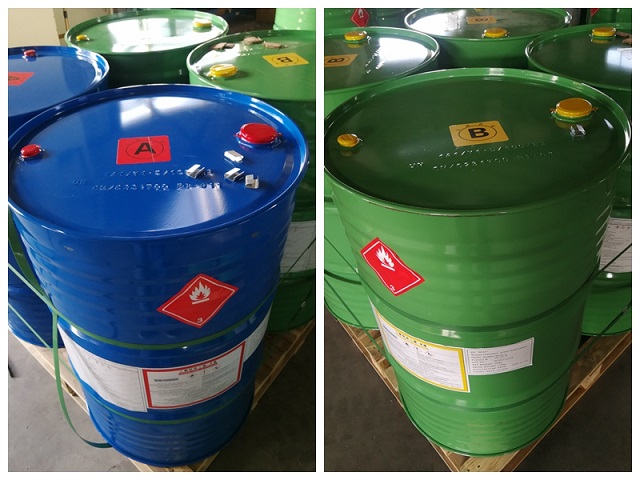

Packing and Delivery

Packing:Metal Barrel, Net Weight:195kg/barrel; Gross Weight:220kgs/barrel



Outstanding Features of PDCPD MATERIAL

Safe Flame Retarant

PDCPD material has reached UL94-HB grade. The central flame retardant mechanism is: that the catalyst promotes the surface carbonization and air insulation flame retardant. Its unique flame retardant safety performance:

During passive combustion, the release of harmful fumes is low, comparable to the release of non-flame retardant general-purpose polypropylene plastics. Compared with traditional flame retardant materials, it dramatically reduces the risk of injury to people at the scene of a fire (the proportion of deaths caused by toxic fumes in a fire is high).

There are no heavy metals or toxic substances left in the combustion process, which will not cause pollution to the environment. It belongs to thermosetting material, does not produce melting drops, flame retardant anti-melting drops.



Green and Sustainable

Complies with occupational health requirements. The material meets the requirements of the international "Banned Substances Program" and does not contain any of the substances listed in the RoHS and REACH SVHC lists. Burning does not produce toxic or hazardous substances.

It is a model material for energy saving and emission reduction. All the production process of this material has low energy consumption and low emission. The total energy consumption of the whole production process is <5000kcal/kg, which is about 1/2 of the energy consumption of polypropylene production.

It’s completely harmless and can be recycled

① Its low-temperature anaerobic cracking can generate light fuel oil and carbon black, and it is efficient and convenient for a wide range of applications.;

② Its low-temperature anaerobic catalytic cracking generates C4 alkane fuel gas and carbon black;

③ it can be recycled and crushed as pavement asphalt as well as thermo-compression plastic modified reinforcing filler;

④ also, as a high-energy fuel, it can be supplied for garbage power plants, combustion calorific value = 1.5 times the standard coal.
