New Material Poly DCPD-RIM Resin for Global Supply

PDCPD (polydicyclopentadiene) materials are characterized by high strength, high toughness, corrosion resistance, low density, low temperature resistance (-40°C without brittleness), aging resistance, etc., and are excellent environmentally friendly materials..

  • Item Name: :

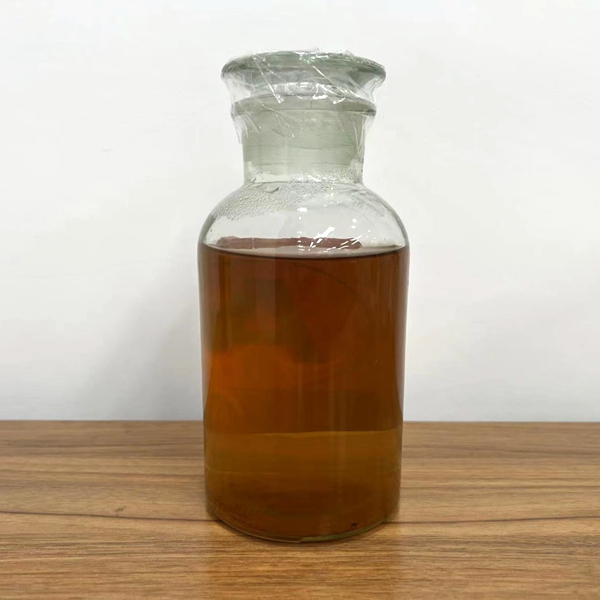

    PDCPD-RIM resin A Liquid
  • Order(MOQ): :

    2 barrels
  • Payment : :

    50% deposit by T/T before mass production with the balance before shipping
  • Product Origin : :

    Bengbu,Anhui,China
  • Color: :

    Transparent yellow/black
  • Shipping Port : :

    Nanjing
  • Lead Time : :

    within one week
  • Net Weight : :

    195kgs/barrel

Product Description

PDCPD-RIM is a paste resin composed of DCPD as the main raw material, supplemented by polymer rubber, antioxidant, main and auxiliary catalysts, and time regulator.

All added substances comply with international ROSH norms. It is generally composed of A and B two-component.

Content A Liquid B Liquid
Appearance Transparent/light yellow viscous liquid Black Viscous Liquid
Viscosity (30℃) 200-380cps 200-380cps
A+B=1:1    In-Molding Mixing Initial tackifying time (Mold temperature 25℃) 5-30S
Suitable injection time  (Mold temperature 70℃) ≤23S
Curing time  (Mold temperature70℃) 150±30S
Molding shrinkage of parts (thickness ≥4mm) 10%
Warranty Period 0-40℃,Nitrogen seal intact,≥6 months

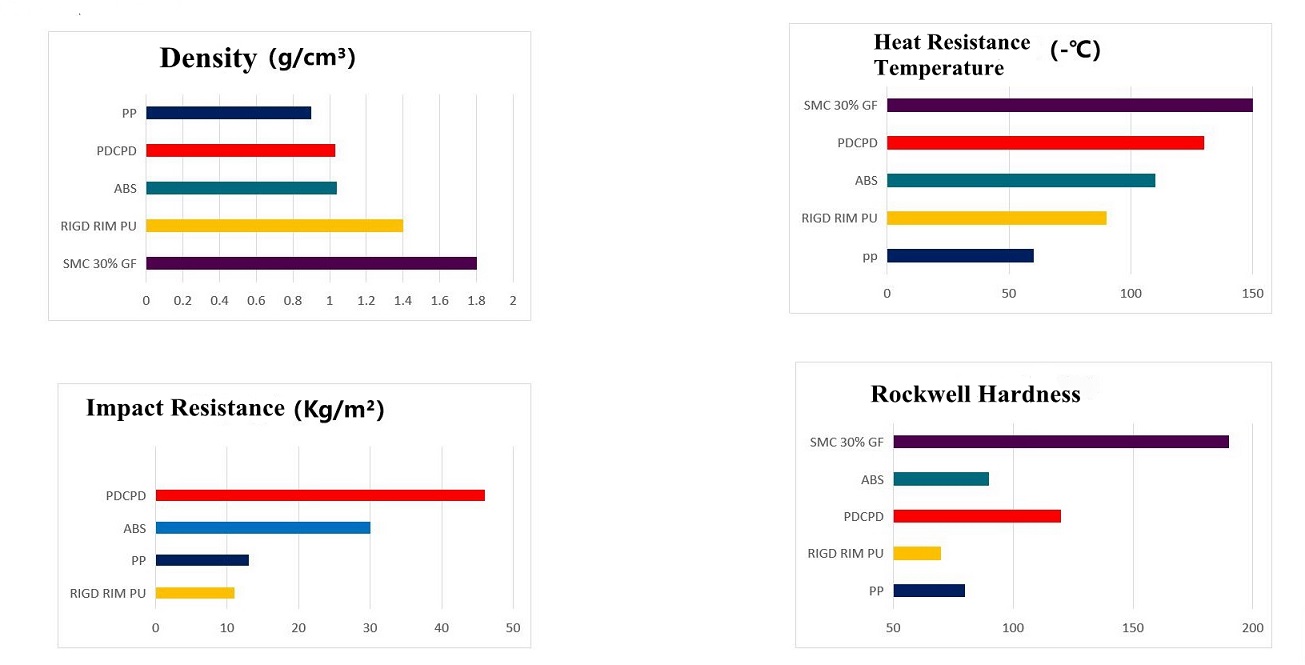

PDCPD Properties VS Other Materials'

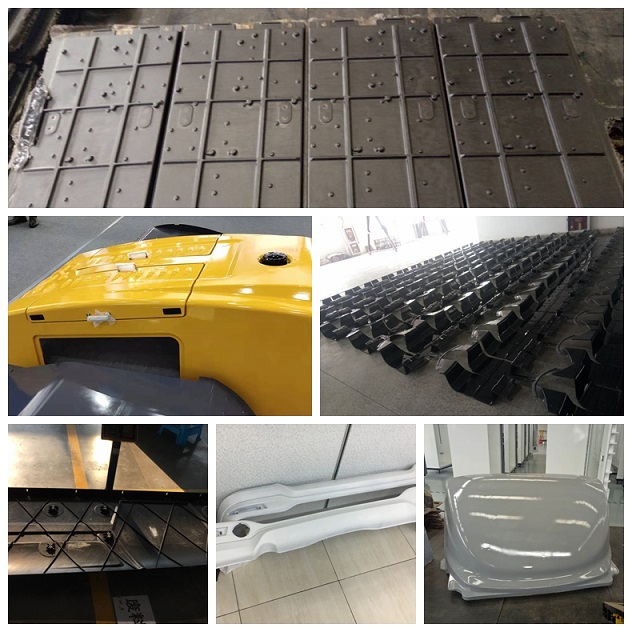

PDCPD Industry Application

PDCPD is most suitable for the manufacture of construction machinery, agricultural machinery, trucks, automobile coverings, integrated large-scale molding products represented by sanitary equipment, and purification tanks. It is the ideal material to replace glass fiber reinforced plastic, some plastics, metal sheet metal parts, carbon fiber, and alloy in the future, and it is also the high-quality choice for lightweight equipment in many new industries such as new energy automobile, wind power generation, unmanned aerial vehicle, tunnel template, robot and so on, and the application field is extremely broad, and it can be widely used in the fields of automobile manufacturing, construction engineering template, agricultural machinery, military, civil, medical, scientific research and national defense.

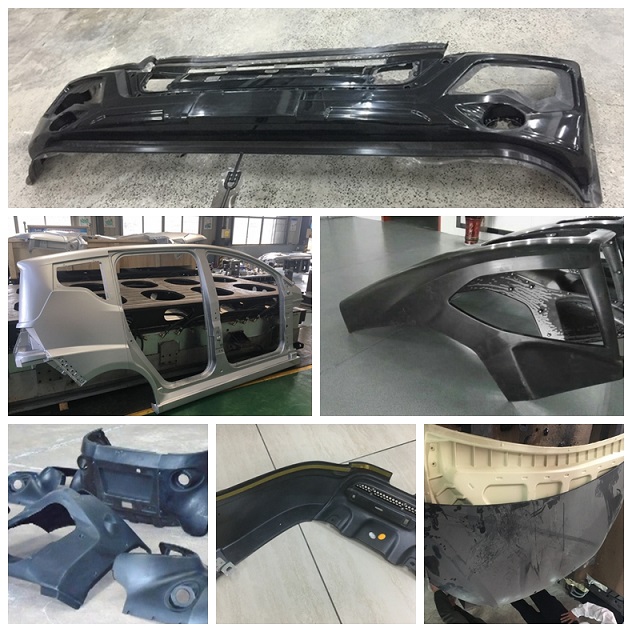

Especally, PDCPD materials are used in the production of automotive parts, replacing metal materials.



PDCPD Products Properties Test Reference

Content

 Unit

Testing Method

Content

 Unit

Testing Method

Tensile strength

47.5MPa

GB/T 1040.2-2006

Rockwell hardness

115

GB/T3398.2-2008

Tensile modulus

1900MPa

GB/T 1040.2-2006

Distortion temperature

110.5

GB/T1634.2-2004

Elongation at break

12.30%

GB/T 1040.2-2006

Density

1.03g/cm³

GB/T1033.1-2008

Compressive strength

60.8MPa

GB/T 1041-2008

Glass transition temperature

169℃

GB/T19466.2-2004

Bending strength

75.6MPa

GB/T9341-2008

Burning horizontally

HB40

GB/T2408-2008

Bending modulus of elasticity

2053MPa

GB/T9341-2008

Water Absorption

0.10%

GB/T1034-2008

Notched impact strength

of cantilever beam (23℃)

33.1

GB/T1843-2008

Automotive interior combustion

Performance (burning rate)

A-0

GB 8410-2006

Notched impact strength of

 cantilever beam (-40℃)

12.8

GB/T1843-2008

Rockwell hardness

115

GB/T3398.2-2008





Outstanding Advantage of PDCPD materials

  • High strength, light weight, easy molding, low energy consumption, no emissions, environmentally friendly materials.
  • The best choice to replace fiberglass, metal carbon steel, stainless steel. It is the best choice for complex and large vehicle coverings
  • Low energy consumption, only need to maintain a certain mold temperature, and the reaction itself exothermic. No need to use high-power heating equipment for a long time
  • Less residual reaction, material in the mold reaction degree is high, fast, out of the mold almost no residual reaction, do not need to worry about deformation.
  • The viscosity is low, liquid DCPD viscosity is very low, can be filled with complex shape molds in a short time, especially suitable for complex shape products.
  • Simple surface treatment, good adhesion to paint, no need to clean when painting.
  • Waste material can be recycled! Because it is pure hydrocarbons, there is no toxic emissions; it will be heated to 380 degrees high-temperature deodorizing enzymes into liquid, decomposed into new components, used as asphalt improver.
